Product Overview

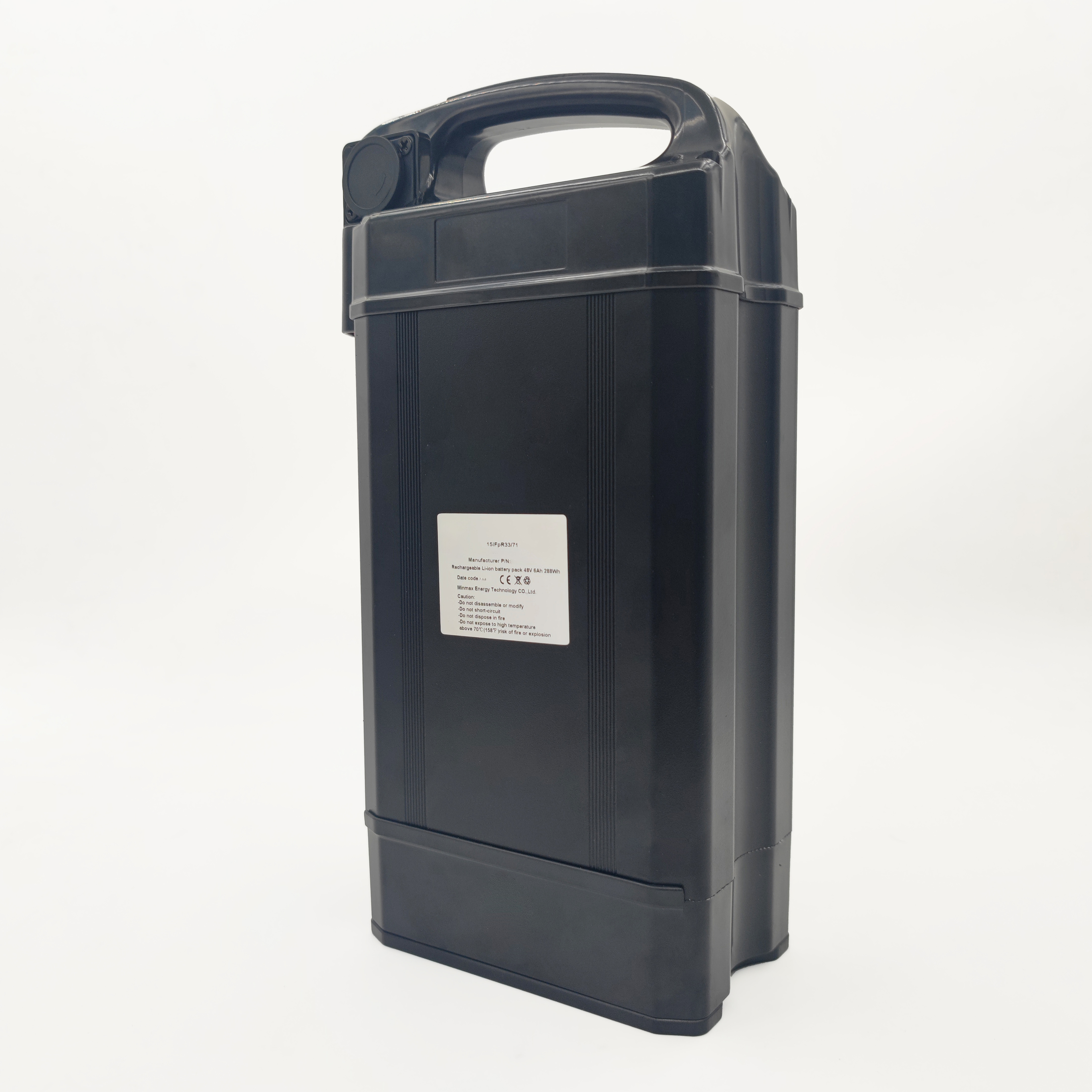

This 48V 6Ah lithium iron phosphate (LiFePO4) battery pack employs a 15S1P configuration using robust IFR32700 cylindrical cells. Designed for energy storage and high-voltage applications with exceptional safety and ultra-long cycle life.
Key Features
* LiFePO4 Chemistry Advantage — Inherently safe cathode material — no thermal runaway, no fire risk, superior thermal stability
* Ultra-Long Cycle Life — 2000+ charge/discharge cycles with ≥80% capacity retention — 4x longer than standard Li-ion
* 15S1P 48V Platform — Compatible with standard 48V inverters, motor controllers, and power systems
* Robust IFR32700 Cells — Large-format 32700 cylindrical cells (32mm × 70mm) deliver high reliability
* Stable Discharge Plateau — Flat discharge curve at 3.2V/cell maintains consistent power output
* Wide Operating Temperature — Performs reliably in extreme environments from -20°C to 65°C
* Built-in BMS with Balancing — Active cell balancing maintains pack health across all 15 series cells
* Green & Environmentally Friendly — No heavy metals, fully recyclable, RoHS compliant
Technical Specifications
Nominal Voltage | 48V |
Rated Capacity | 6000mAh (6Ah) (307.2Wh) |
Cell Type | LiFePO4 IFR32700 |
Configuration | 15S1P |
Charge Voltage | 54.75V |
Discharge Cut-off | 37.5V |
Max Continuous Discharge | 1C (6A) |
Cycle Life | ≥2000 cycles |
Protection Circuit | Overcharge, Over-discharge, Cell Balancing, Short Circuit, Temperature |
Charge Temp | 0°C ~ 45°C |
Discharge Temp | -20°C ~ 65°C |
Applications: Solar Energy Storage, E-Bikes (48V), UPS Backup, Telecom, Electric Wheelchairs, Golf Carts
