Product Description

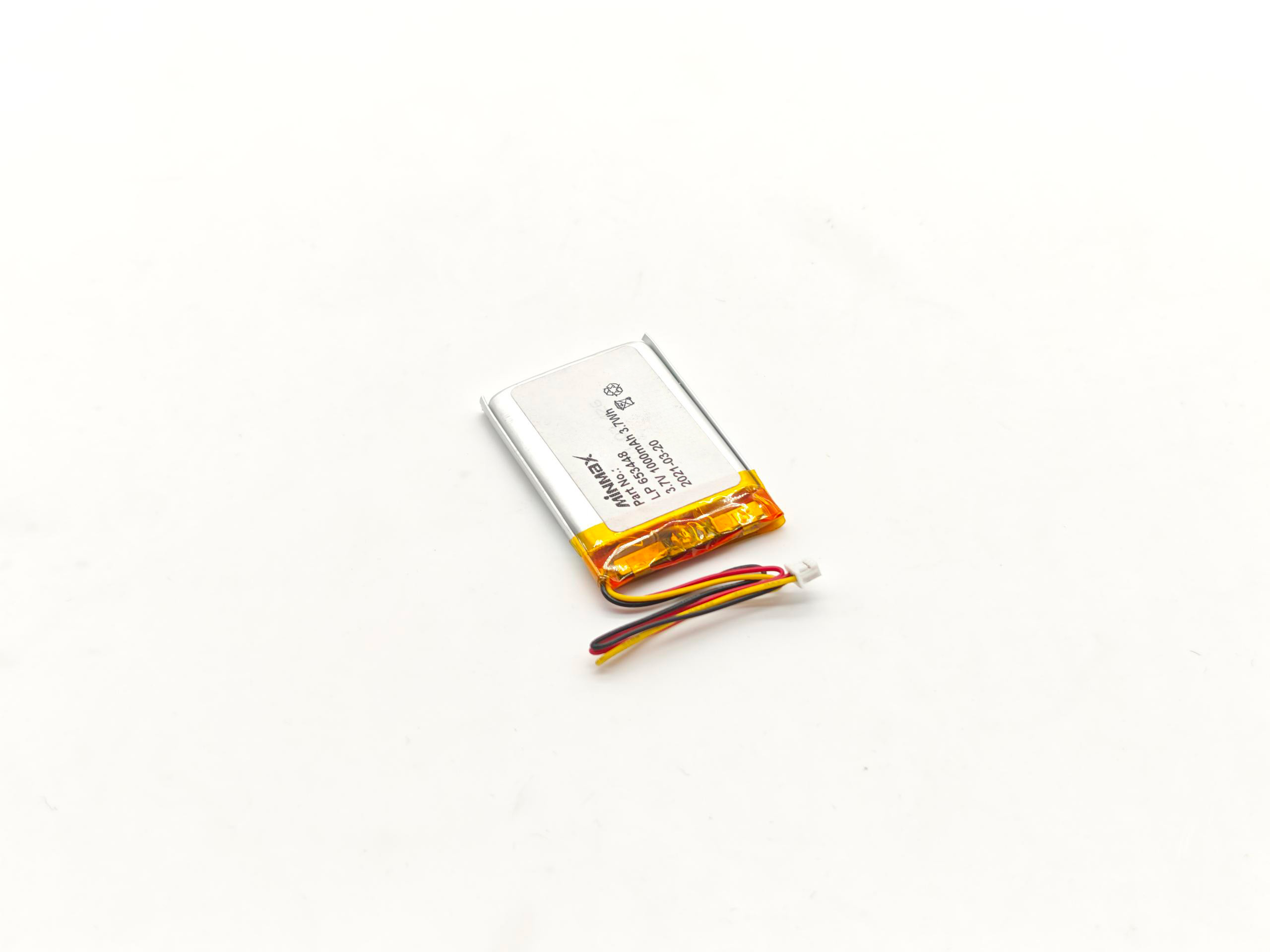

A slim, lightweight 3.7V lithium polymer battery pack built around the LP653448 pouch cell. Delivering 1000mAh (3.7Wh) in a space-efficient form factor approximately 6.5×34×48mm, this battery is purpose-built for compact consumer electronics where every millimeter counts. The integrated PCM (Protection Circuit Module) handles overcharge, over-discharge, overcurrent, and short-circuit protection — simply connect and power your device.
Technical Specifications (Schema.org Structured Data Ready)
Parameter | Specification |
Nominal Voltage | 3.7V DC |
Rated Capacity | 1000mAh / 3.7Wh |
Chemistry | Li-Polymer (Soft Pouch) |
Configuration | 1S1P |
Cell Model | LP653448 |
Cell Dimensions | ~6.5mm × 34mm × 48mm |
Charge Voltage | 4.2V ±0.05V (CC/CV) |
Discharge Cut-off | 3.0V |
Standard Charge Current | 0.5C (500mA) |
Max Discharge Current | 1C (1000mA) |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit |
Cycle Life | ≥500 cycles |
Packaging | Blue PVC shrink wrap + PCM |
Output | Lead wires (connector customizable) |
Certifications | UN38.3 / MSDS / CE / RoHS |
