Product Description

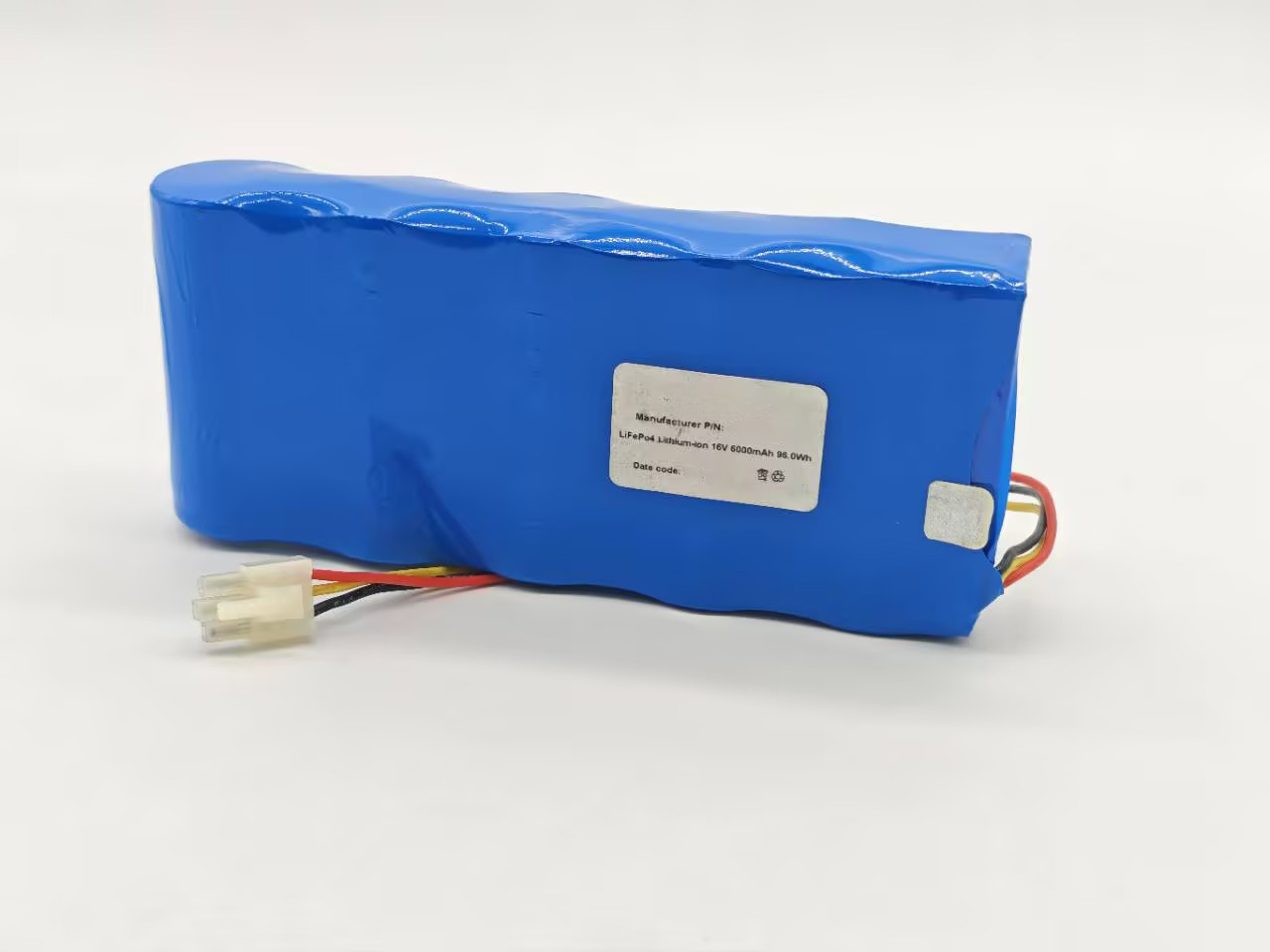

Where safety and longevity are non-negotiable, this 16V LiFePO4 battery pack sets the standard. Built around five IFR32650 large-format cylindrical cells (32mm diameter × 65mm length) in a 5S1P configuration, it delivers 6000mAh (96Wh) with the intrinsic thermal and chemical stability that only lithium iron phosphate chemistry provides. LiFePO4 does not experience thermal runaway, does not catch fire when punctured, and withstands temperatures that would compromise conventional Li-ion cells — all while delivering 2,000+ full charge cycles to 80% capacity.
Technical Specifications (Schema.org Structured Data Ready)
Parameter | Specification |
Nominal Voltage | 16V DC (LiFePO4: 3.2V/cell × 5) |
Rated Capacity | 6000mAh / 96Wh |
Chemistry | LiFePO4 (Lithium Iron Phosphate) |
Configuration | 5S1P (5 cells in series) |
Cell Model | IFR32650 |
Cell Dimensions | Ø32mm × 65mm |
Charge Voltage | 18.25V ±0.05V (CC/CV) |
Discharge Cut-off | 12.5V |
Standard Charge | 0.5C (3000mA) |
Max Continuous Discharge | 3C (18,000mA) |
Cycle Life | ≥2000 cycles (80% retention) |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit / Temperature |
Packaging | PVC shrink wrap + BMS |
Connector | Main leads + balance port |
Weight | ~850g |
Certifications | UN38.3 / MSDS / CE / RoHS |
